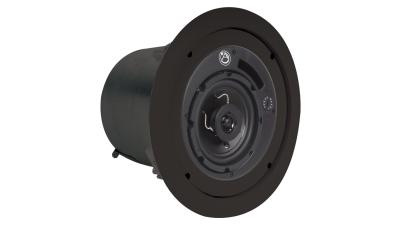

FAP42T-B - 4", 16 Watt Strategy II Coaxial Speaker System - Black

Product Overview

Features and Benefits

  • Strategy II 4" coaxial ceiling speaker system- black
  • Includes speaker, back box, grill and tile bridge
  • Press-fit grille blends into contemporary architecture
  • Speaker type: 4" Coaxial
  • Transformer type: 70.7V / 100V - 16 Watt
  • Power Taps-1, 2, 4, 8, 16, 8 ohm bypass
  • Sensitivity: 88db average
  • Frequency Response 75Hz - 20kHz
  • Dispersion:130 degrees
  • UL Certified, UL1480


  • Commercial audio systems and solutions
  • Use for background music (BGM) and paging systems

FAP42T-B Summary

FAP42T-B combines superior coaxial loudspeaker performance with wide dispersion and easy installation. A low profile enclosure and wide coverage make the FAP42T-B a perfect choice for low ceilings. The FAP42T-B will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP42T-B is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

FAP42T-B Diagrams

No available cross references for FAP42T-B

Alternatives for FAP42T-B

No equivalent alternates available for FAP42T-B



PDF Spec Sheet

FAP42T-B Firmware

FAP42T-B Software

FAP42T-B Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
