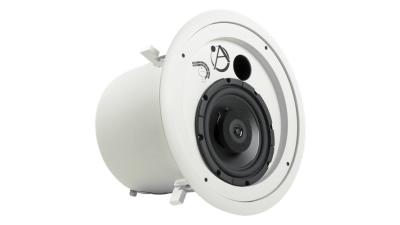

8", 60 Watt Strategy II Coaxial Speaker System
FAP82T
Product Overview
Features and Benefits
- Strategy II 8" coaxial ceiling speaker system
- Includes speaker, back box, grill and tile bridge
- Press-fit grille blends into contemporary architecture
- Speaker type: 8" Coaxial
- Transformer type: 70.7V / 100V - 60 Watt
- Power Taps- 1.9, 3.8, 7.5, 15, 30, 60, 8 ohm bypass
- Sensitivity: 90db average
- Frequency Response 55Hz -20kHz
- Dispersion:100 degrees
- UL Certified, UL1480
Applications
- Commercial audio systems and solutions
- Use for background music (BGM) and paging systems
FAP82T Summary
High quality construction 1" voice coil, 8" coaxial cone type driver includes polypropylene cone with a butyl rubber surround. The 19mm coaxially mounted tweeter is constructed of PEI. sensitivity of 90dB average means less power may be required to achieve the desired SPL. This loudspeaker is factory assembled to an optimally tuned & ported deep drawn enclosure and includes a specially designed 60 watt low saturation 70.7V/100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This tap selector switch also includes a transformer bypass setting for instances where the 8 ohm FAP82T driver is to be direct coupled with a low impedance amplifier.
FAP82T Diagrams
No available cross references for FAP82T
Alternatives for FAP82T
No equivalent alternates available for FAP82T
.FAP82T Firmware
FAP82T Software
FAP82T Pre-made Drivers
Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
