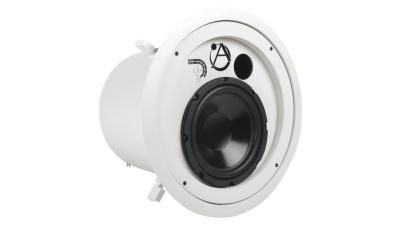

8", 60 Watt Strategy II Subwoofer Speaker System
FAPSUB-1
Product Overview
Features and Benefits
- Strategy II 8" subwoofer ceiling speaker system
- Add low frequency response to full range systems
- Includes speaker, back box, grill and tile bridge
- Speaker type: 8" In ceiling sub
- Transformer type: 70.7V / 100V - 60 Watt
- Power Taps- 1.9, 3.8, 7.5, 15, 30, 60, 8 ohm bypass
- Sensitivity: 89db average
- Frequency Response 45Hz to 120Hz (-/+10dB)
- Dispersion: Omni
- UL Certified, UL1480
Applications
- Commercial audio systems and solutions
- Use for background music (BGM) and paging systems
FAPSUB-1 Summary
The FAPSUB-1 adds impressive low frequency response to any full range distributed system. The FAPSUB-1 consists of a highly efficient 8", 8 ohm subwoofer designed and built by Atlas Sound to work optimality in the FAPSUB-1 enclosure system. A highly efficient, 3-pole filtering network eliminates unwanted high frequencies from the woofer,while the 937 cubic inch, tuned and ported, deep drawn steel enclosure provides bass response down to 45Hz (±10dB).
FAPSUB-1 Diagrams
No available cross references for FAPSUB-1
Alternatives for FAPSUB-1
No equivalent alternates available for FAPSUB-1
