GA-15T Summary

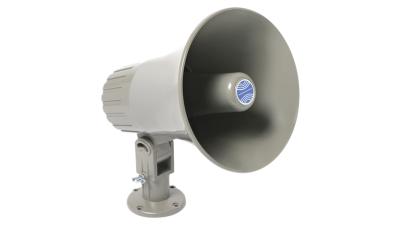

The GA-15T loudspeaker is a utility horn perfectly suited for voice paging and music transmission.

Double re-entrant horn construction optimizes loudspeaker output to penetrate ambient sound levels. This 15-watt model incorporates a compression driver with ceramic magnet and includes a combination 25/70.7-volt line transformer with multi-position knob switch for selecting power taps. Unit is also equipped with wiring for an 8-ohm connection to facilitate installation when a transformer is not required.

GA-15T features a round, high-impact plastic horn and will withstand outdoor installation in high-humidity environments.

Adjustable surface mounting bracket provides multiple (vertical & horizontal) positioning. Each assembly is supplied with 21 gauge 18" color coded wire leads for matching polarity and loudspeaker connection.

GA-15T Diagrams

No available cross references for GA-15T

Alternatives for GA-15T

No equivalent alternates available for GA-15T

GA-15T Firmware

GA-15T Software

GA-15T Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
