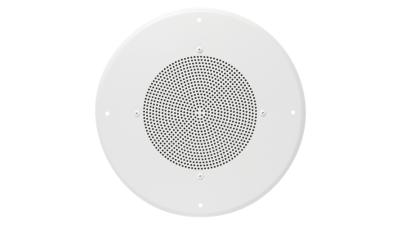

8", 4 Watt Economy Loudspeaker Package with 62-8 Baffle
HD72W
Product Overview
Features and Benefits
- Economy 8" loudspeaker with 62-8 baffle package
- Easy to order speaker/transformer/grill assembly
- Speaker type: Treated paper
- Transformer type: 20V/70.7V - 4 watt
- Power Taps- 0.25, .5, 1, 2, & 4 Watts
- Sensitivity: 96db average
- Frequency Response 100 Hz - 10 kHz, -/+ 1.5dB
- Dispersion:105 degrees
Applications
- Commercial audio systems and solutions
- Use for background music (BGM) and paging systems
HD72W Summary
Model HD72W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V/25V transformer and screw type grill. Unit is shipped assembled, ready for installation. The HD72W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance. The HD72W includes a factory mounted dual voltage transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100 Hz to 10 kHz. Speaker / transformer is factory installed on a 62-8 style baffle.
