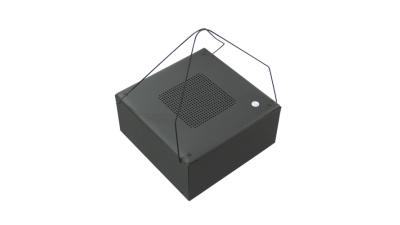

M1000-USA - 8", 4W Sound Masking Speaker, Square Enclosure - "Buy America Act" Standards

Product Overview

Features and Benefits

  • 8" Sound Masking Speaker
  • Completely assembled with back box, baffle
  • Mounting hardware included
  • Speaker type: 8" Dual Cone
  • Transformer type: 70.7V - 4 watt
  • Power Taps- 0.25, 0.5, 1, 2 and 4 Watts
  • Sensitivity: 94db average
  • Frequency Response 100 Hz - 10 kHz, -/+ 1.5dB
  • UL 1480 & UL 2043

Applications

  • Commercial audio systems and solutions
  • Use for sound masking applications / speech privacy

M1000-USA Summary

With a majority of America's workplaces having adopted an open office plan, favoring a labyrinth of cubicles over traditional closed offices, conversational privacy has become an increasingly sensitive issue. A properly designed sound masking system can significantly increase speech privacy and improve the overall work environment.

The Atlas Sound M1000-USA sound masking speaker assembly is designed to accurately reproduce the needed spectrum of masking sound into the plenum space. The innovative 734 in3 square enclosure ensures ample low frequency response. A specially designed 8" dual cone loudspeaker is included in the package. A high efficiency 70.7V internal transformer is coupled to an external selector switch for easy system tuning. For more precise adjustments, an off switch and a wide selection of wattage taps ranging from .25 watts to 4 watts are provided.

M1000-USA Diagrams

No available cross references for M1000-USA

Alternatives for M1000-USA

No equivalent alternates available for M1000-USA

.

Specifications

PDF Spec Sheet
