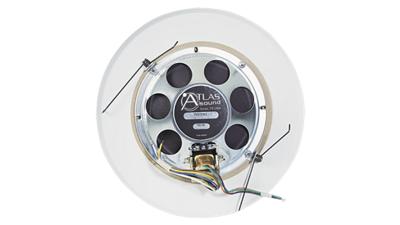

8", 4 Watt Loudspeaker Package with T62-8 Baffle
THD72WC
Product Overview
Features and Benefits
- 8" loudspeaker package with T62-8 Baffle
- Individually packaged for stock & ordering convenience
- Comes with Mounted Brackets and Rails for Quick Assembly
- Speaker type: 8" Dual Cone
- Transformer type: 25V/70.7V - 4 watt
- Power Taps- 0.5, 1, 2, & 4 Watts
- Sensitivity: 97db average
- Frequency Response 100Hz - 10kHz, -/+ 1.5dB
- Dispersion:105 degrees
Applications
- Commercial audio systems and solutions
- Use for background music (BGM) and paging systems
THD72WC Summary
THD72WC are cost-effective 8" dual-cone loudspeaker assemblies which deliver wide frequency response for general purpose voice and music reproduction. Units are shipped complete with grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense. HD Series models have a power rating of 25 watts and are mounted to a T62-8 torsion mount baffle. It will accept optional protective enclosures and mounting accessories to meet installation and code requirements
THD72WC Diagrams
No available cross references for THD72WC
Alternatives for THD72WC
No equivalent alternates available for THD72WC
.THD72WC Firmware
THD72WC Software
THD72WC Pre-made Drivers
Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
