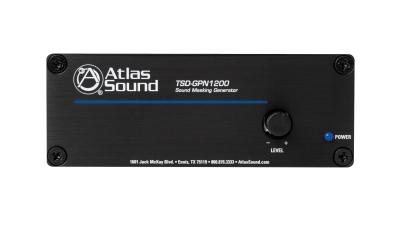

Sound Masking Generator
TSD-GPN1200
Product Overview
Features and Benefits
- Balanced Line Output Plus 4W, 70.7V Output
- Adjustable Gain and Hi-Cut Filter
- EQ & Gain Bypass for Line Output
- Selectable Pink or White Noise Source
- Stand Alone or Rack Mountable
- Security Covers Included for All Rear Panel Controls
Applications
- Commercial audio systems and solutions
- Use for masking sensitive communications
- Meeting patient confidentiality standards
TSD-GPN1200 Summary
The Atlas Sound TSD-GPN1200 sound masking generator is perfectly suited for basic sound masking systems. The analog topology design eliminates repeating cycles commonly found in other manufactures low cost digital designs.
The TSD-GPN1200 allows selection between pink or white noise sources and incorporates a variable balanced outputto match input requirements of Atlas Sound equalizers and amplifiers. In addition to the line level output, a 4W, 70V output is provided to power up to six masking loudspeakers tapped at .5W each.
TSD-GPN1200 Diagrams
No available cross references for TSD-GPN1200
Alternatives for TSD-GPN1200
No equivalent alternates available for TSD-GPN1200
