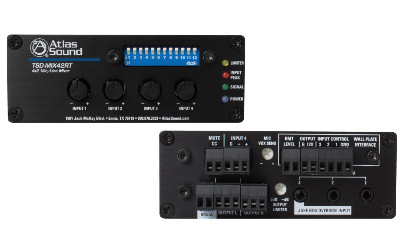

TSD-MIX42RT - 4x2 Mic/Line Audio Mixer with Priority Sense and Remote Control

Product Overview

Features and Benefits

  • 4x2 Mic/Line Mixer with Priority Sense and Remote Control
  • Stereo or Mono Configurations
  • One Balanced Mic/Line Input
  • Three Unbalanced Stereo Line Inputs 3.5mm
  • Priority Paging - Contact Closure or VOX Trigger on Input 1
  • Variable Output Limiter
  • 12dB/octave High Pass Filter @ 125Hz on the Mic Input
  • Removable I/O Connectors
  • Frequency Response 20Hz - 20kHz (+/-1dB)
  • Power Supply Sold Separately

Applications

  • Commercial audio systems and solutions

TSD-MIX42RT Summary

The Atlas Sound TSD-MIX42RT 4x2 mic/line mixer is ideal for applications where paging, priority music override and/or remote input selection with level control are required. Use alone or in conjunction with amplifiers in meeting rooms, digital signage, luxury suites, and other applications requiring versatile, stereo or mono multi source mix control.

The unit includes one mic/balanced line input via removable Phoenix style connector and three stereo 3.5mm inputs. Switchable phantom power is provided for the mic input to facilitate condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter @ 125Hz also is available on the mic input to minimize bass rumble and low frequency feedback.

The TSD-MIX42RT can be used in conjunction with a WPD-MIX42RT decor style wall plate that is designed for remote activation of the TSD-MIX42RT mic/line mixer.

TSD-MIX42RT Diagrams

No available cross references for TSD-MIX42RT

Alternatives for TSD-MIX42RT

No equivalent alternates available for TSD-MIX42RT

.

Specifications

PDF Spec Sheet

TSD-MIX42RT Firmware

TSD-MIX42RT Software

TSD-MIX42RT Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
