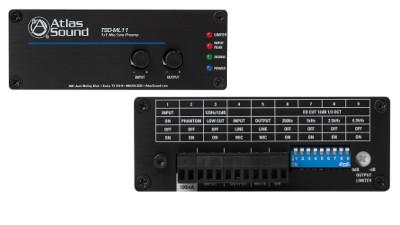

TSD-ML11 Summary

The TSD-ML11 high headroom, low noise mic preamp is perfect for use as a standalone preamp or in conference room systems, board meetings, courtrooms, council chambers, and public forum systems that need mute and push to talk microphone functions.

Unit features switchable phantom power for powering condenser microphones and has four EQ cut filters centered at common frequencies to eliminate feedback and control voice shaping. The variable mic preamp helps further eliminate noise for quiet operation as well as reduces unwanted coloration and changes in tonality and a 12dB @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system and ensure focus and clarity stays on voice sound spectrum. An output limiter/compressor is also included for system protection to avoid clipping and eliminate distortion. Mic Mute and Mic On control allows microphones in the system to be push-to-talk enabled or muted for speaker priority.

TSD-ML11 Diagrams

No available cross references for TSD-ML11

Alternatives for TSD-ML11

No equivalent alternates available for TSD-ML11

TSD-ML11 Firmware

TSD-ML11 Software

TSD-ML11 Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
