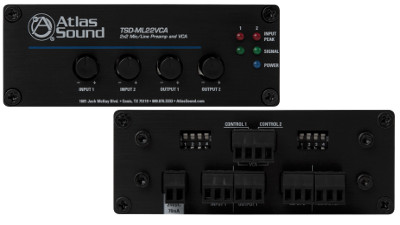

TSD-ML22VCA - 2 x 2 Mic/Line Preamp and VCA

Product Overview

Features and Benefits

  • The TSD-ML22VCA is a 2 input, 2 output true VCA with enhanced features including a high quality microphone pre amplifier
  • VCA's inserted prior to amplification provide a far more efficient solution than transformer-based attenuators for volume adjustment in high power music applications
  • The dual channel design can provide level control for two separate discrete zones or stereo sources and is perfect for use in sports bars, restaurants, hotels or other installations. The TSD-ML22VCA also provides two high quality, low noise mic pre-amps, which allow simplification of designs that require remote microphone level adjustment
  • Switchable phantom power is provided for powering condenser microphones and a 12dB/octave @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system ensuring focus and clarity for the voice spectrum.

TSD-ML22VCA Summary

The TSD-ML22VCA is a 2 input, 2 output true VCA with enhanced features including a high quality microphone pre amplifier. VCA's inserted prior to amplification provide a far more efficient solution than transformer-based attenuators for volume adjustment in high power music applications. The dual channel design can provide level control for two separate discrete zones or stereo sources and is perfect for use in sports bars, restaurants, hotels or other installations.

The TSD-ML22VCA also provides two high quality, low noise mic pre-amps, which allow simplification of designs that require remote microphone level adjustment. Switchable phantom power is provided for powering condenser microphones and a 12dB/octave @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system ensuring focus and clarity for the voice spectrum.

TSD-ML22VCA Diagrams

No available cross references for TSD-ML22VCA

Alternatives for TSD-ML22VCA

No equivalent alternates available for TSD-ML22VCA

.

Specifications

PDF Spec Sheet

TSD-ML22VCA Firmware

TSD-ML22VCA Software

TSD-ML22VCA Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
