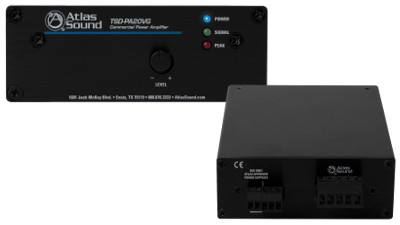

TSD-PA20VG - 20 Watt Mono 25V/70.7V/100V Power Amplifier

20 Watt Mono 25V/70.7V/100V Power Amplifier

TSD-PA20VG


Ordering Options

Pricing

Login for Your Price

Availability

Product Options

Units:
Add to Cart

Have Tech Questions?
California Proposition 65
TSD-PA20VG - 20 Watt Mono 25V/70.7V/100V Power Amplifier

Product Overview

Features and Benefits

  • 20 Watt Mono 25V/70.7V/100V Power Amplifier
  • (1) Balanced Input
  • Removable Phoenix Style I/O Connectors
  • Compact Chassis Design
  • Power Output: 10W @ 4Ω, 5W @ 8Ω, 10W @ 25V/70V/100V Loads
  • Frequency Response: 40Hz - 20kHz (+/-3dB)
  • Power Supply Sold Separately

Applications

  • Commercial audio systems and solutions

TSD-PA20VG Summary

The TSD-PA20VG is a cost effective mono amplifier for 4Ω and distributed constant voltage speaker systems. Applications include hallways and classrooms. The TSD-PA20VG is also a cost effective alternative for small projector systems as it can be used with as many as (16) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.

For sound masking applications the TSD‑PA20VG has the capacity to drive up to 34 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob. Power supply not included.

TSD-PA20VG Diagrams

No available cross references for TSD-PA20VG

Alternatives for TSD-PA20VG

No equivalent alternates available for TSD-PA20VG

.

Specifications

PDF Spec Sheet

TSD-PA20VG Firmware

TSD-PA20VG Software

TSD-PA20VG Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
