TSD-PA252G - Two Channel Power Amplifier 25W x 2 @ 4 Ohm

Product Overview

Features and Benefits

  • Two Channel Power Amplifier 25W x 2 @ 4Ω
  • (2) Balanced Inputs / Dual RCA Inputs
  • Removable Phoenix Style I/O Connectors
  • Compact Chassis Design
  • Power Output: 25W x 2 CH @ 4Ω, 50W x 1 CH @ 8Ω Bridged
  • Frequency Response: 20Hz - 20kHz (+/-3dB)
  • Power Supply Sold Separately

Applications

  • Commercial audio systems and solutions

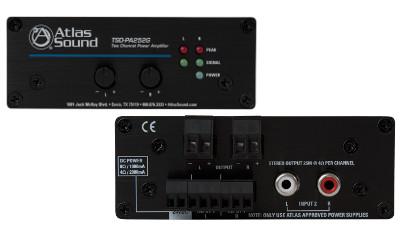

TSD-PA252G Summary

The TSD-PA252G is a reliable, cost effective 4Ω stereo amplifier well suited for higher power amplification requirements. Output is 25W per channel at 4Ω or 50W bridge mono at 8Ω. Input is via balanced stereo phoenix style and unbalanced RCA connectors. Front panel gain controls provide adjustment for both left/right or bridged outputs and include removable knobs.

TSD-PA252G Diagrams

No available cross references for TSD-PA252G

Alternatives for TSD-PA252G

No equivalent alternates available for TSD-PA252G

.

Specifications

PDF Spec Sheet

TSD-PA252G Firmware

TSD-PA252G Software

TSD-PA252G Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
