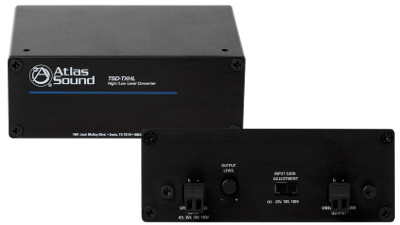

High / Low Level Converter
TSD-TXHL
Product Overview
Features and Benefits
- High to Low Level Audio Converter
- Tap Into 4Ω/25/70/100V Speaker Lines
- Input Gain Adjustment Switch
- Trim Level Control
- Isolated Transformer
- Removable I/O Connectors
- No External Power Required
- High level input: 4Ω, 8Ω, 25V, 70V and 100V
- Output impedance: 600Ω Unbalanced
Applications
- Commercial audio systems and solutions
TSD-TXHL Summary
The TSD-TXHL is a high to low level converter designed to interface with 4Ω/25/70/100V distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or other devices. The TSD-TXHL allows easy expansion of zones without the need for dedicated wiring to remote locations. The high to low-level converter features an isolated transformer, which will not add measurable load to the speaker line. An output level control allows for trim adjustment to best match the remote amplifier (or other device) input sensitivity. The TSD-TXHL works perfectly in conjunction with Atlas Sound's CP and PA series amplifiers.
TSD-TXHL Diagrams
No available cross references for TSD-TXHL
Alternatives for TSD-TXHL
No equivalent alternates available for TSD-TXHL
