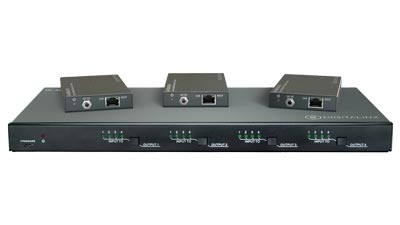

4X4 4K HDBT Matrix Switch kitted with 3 HDBaseT PoE receivers

4k 4 hdmi input Hdbt Matrix with 3 HdbaseT 70m receivers. Analog and digital audio de-embedding on each output. House of Worship, Corporate video application

DL-44E-KIT


Ordering Options

Pricing

Login for Your Price

Availability

Product Options

Units:
You might also consider this alternate:

Add to Cart

Have Tech Questions?
California Proposition 65
DL-44E-KIT - 4X4 4K HDBT Matrix Switch kitted with 3 HDBaseT PoE receivers

Product Overview

Features and Benefits

  • Four HDMI inputs with 4K & HDCP 2.2 support
  • 3 HDBaseT with PoE outputs
  • 1 HDMI output
  • 3 HDBaseT receivers kitted with the switch
  • 70m maximum extender distance
  • Analog and digital audio de-embedding on the HDMI output
  • Front panel, IR, TCP/IP, and RS232 control
  • IR tunneling over HDBaseT
  • Control page and configuration accessible from web browser
  • Advanced HDCP management

Applications

  • True matrix routing and distribution of HDMI signals
  • A/V routing in environments with demanding control system
  • Ideal for houses of worship, corporate video conferencing,


DL-44E-KIT Summary

The DL-44E-KIT is a professional 4K HDBaseT home distribution hub kit, which consists of a 4K HDBaseT matrix switcher, 3 HDBaseT receivers and accessories. The DL-44E-KIT is a professional 4x4 HDBaseT matrix switcher that consist of the following inputs and outputs: 4 HDMI IN (4kx2K@60Hz signal at max), 3 IR IN, 1 IR EYE, 4 IR OUT, 3 HDBaseT OUT, 1 HDMI OUT, 1 SPDIF OUT, 1 L&R RCA OUT, and TCP/IP, RS232 control port via phoenix connector. The DL-44E-KIT offers manual HDCP management and auto-detecting along with easy installation with rack-mounting design.

The DL-HD70LS-RX is an HDBaseT receiver that consists of the following inputs and outputs: 1 HDBaseT IN, 1 IR IN, 1 IR OUT and HDMI OUT. The receiver is powered directly by the DL-44E-KIT. All HDMI inputs can be selected by either the front panel buttons, IR, RS232 or GUI. The selected source is delivered to HDBaseT zoned outputs 1-3 & HDMI output.

The DL-44E-KIT is capable of delivering 4K signals up to 40m, 1080p up to 70m and powering the receivers via a single CAT5e cable. It is recommended to use good quality CAT6 cable. The Matrix Switcher supports EDID management and is HDCP 2.2, 1.4 compliant. Audio sources can be selected via RS232 commands and TCP/IP at the matrix switcher or by 3rd party control.

DL-44E-KIT Diagrams

No available cross references for DL-44E-KIT

Alternatives for DL-44E-KIT

Part Number Description
DL-44E-H2-KITDigitaLinx 4X4 HDMI 2.0 / HDBaseT Matrix Switch Kit

Supporting Documents

DL-44E-KIT Installation Manual

Specifications

PDF Spec Sheet

DL-44E-KIT Firmware

DL-44E-KIT Software

DL-44E-KIT Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
