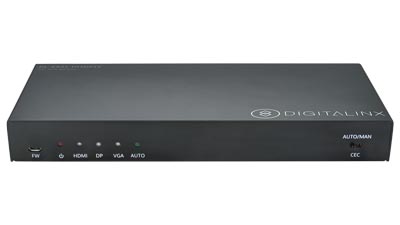

3X1 Auto Switcher with HDMI, Display Port and VGA Inputs
DL-AS31-1H1DP1VDiscontinued Item
Product Overview
Features and Benefits
- 1 HDMI, 1 DisplayPort, & 1 VGA input
- 1 HDMI and stereo audio output
- HDMI and DP support 1080p and 4K video with stereo audio
- VGA scales up to 1920x1200 with audio embedding
- Built-in EDID settings and EDID pass-through
- Built-in audio de-embedding
- Automatic and manual switching via RS232 and contact closures
- Includes under table mounting ears
Applications
- Under-table switcher for conference tables
- Easy integration of legacy components into a digital environment
- Analog to digital conversion and scaling up to 1920x1200
- Ideal for corporate facilities, churches, schools, and conference centers
DL-AS31-1H1DP1V Summary
The DL-AS31-1H1DP1V is a multiformat auto-switcher with one HDMI input, one DisplayPort with analog audio input, one VGA with analog audio input, one HDMI output, and one balanced analog audio output. This auto-switcher supports HDMI and DisplayPort video resolutions up to 4Kx2K at 30 Hz and multichannel audio and VGA video resolutions up to 1920x1200 at 60 Hz. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The DL-AS31-1H1DP1V will de-embed the digital audio from the HDMI output signal, and output it via the balanced analog audio output port.
When in auto-switch mode, the DL-AS31-1H1DP1V will switch to a signal input as soon as a new source is connected. When the active source is removed, the switcher will select the first source on the lowest numbered input. The DL-AS31-1H1DP1V may also be controlled via RS232 commands or by contact closures on the rear of the switcher.
DL-AS31-1H1DP1V Diagrams
No available cross references for DL-AS31-1H1DP1V
Alternatives for DL-AS31-1H1DP1V
No equivalent alternates available for DL-AS31-1H1DP1V
.Download Hi-res Images
DL-AS31-1H1DP1V Firmware
DL-AS31-1H1DP1V Software
DL-AS31-1H1DP1V Pre-made Drivers
Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
