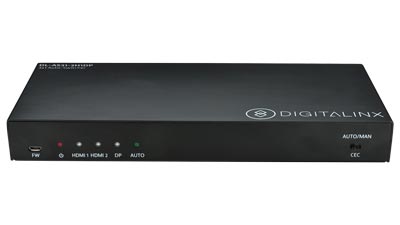

DigitaLinx 3x1 HDMI & DisplayPort Auto-Switcher
4K 10.2G 3x1 auto switcher with 2 HDMI & 1 DisplayPort switched to HDMI output w/ audio de-embed & simple display control
DL-AS31-2H1DP-BSTK
Product Overview
Features and Benefits
- 2 HDMI & 1 DisplayPort inputs
- 1 HDMI and stereo audio output
- HDMI and DP support 1080p and 4K video with stereo audio
- Built-in EDID settings and EDID pass-through
- Built-in audio de-embedding
- Automatic and manual switching via RS232 and contact closures
- Includes under table mounting ears
Applications
- Under-table switcher for conference tables
- Easy integration of legacy components into a digital environment
- Ideal for corporate facilities, churches, schools, and conference centers
DL-AS31-2H1DP-BSTK Summary
The DL-AS31-2H1DP is a multiformat auto-switcher with two HDMI inputs, one DisplayPort with analog audio input, one HDMI output, and one balanced analog audio output. This auto-switcher supports HDMI and DisplayPort video resolutions up to 4Kx2K at 30 Hz and multichannel audio. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The DL-AS31-2H1DP will de-embed the digital audio from the HDMI output signal, and output it via the balanced analog audio output port.
When in auto-switch mode, the DL-AS31-2H1DP will switch to a signal input as soon as a new source is connected. When the active source is removed, the switcher will select the first source on the lowest numbered input. The DL-AS31-2H1DP may also be controlled via RS232 commands or by contact closures on the rear of the switcher.
DL-AS31-2H1DP-BSTK Diagrams
No available cross references for DL-AS31-2H1DP-BSTK
Alternatives for DL-AS31-2H1DP-BSTK
No equivalent alternates available for DL-AS31-2H1DP-BSTK
.Download Hi-res Images
DL-AS31-2H1DP-BSTK Firmware
DL-AS31-2H1DP-BSTK Software
DL-AS31-2H1DP-BSTK Pre-made Drivers
Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
