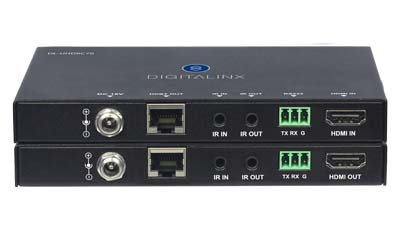

DigitaLinx HDMI HDBaseT Extension Set w/ Control & Re-Clocking

4K 10.2G 70m HDMI extension set with RS232, IR, 2 way flexible PoC, & Re-Clocling circuitry

DL-UHDRC70


Discontinued Item

Ordering Options

Pricing

Login for Your Price

Availability

Product Options

Units:
You might also consider this alternate:

Add to Cart

Have Tech Questions?
California Proposition 65
DL-UHDRC70 - DigitaLinx HDMI HDBaseT Extension Set w/ Control & Re-Clocking

Product Overview

Features and Benefits

  • Complete set includes TX, RX, mounting tabs, IR flasher/sensor, & power supply
  • Extend HDMI signals up to 4K up to 100m (4K 70m / 1080P 100m) w/ Re-Clocking Circuitry for maximum device compatibility such as cable boxes and streaming players
  • Extends bi-directional IR, RS232 and ethernet pass through. Flexible PoC (Power on either end)
  • Supports HDMI 2.0+, HDR and HDCP 2.2
  • Re-clocking feature allows for compatibility with 4K media players such as Roku and Amazon, cable set top boxes, and any other HDMI source
  • Cat5E/6 Cable 1080P 60M, 4K60 4:2:0 35M
  • Cat6/7 Cable 1080P 70M, 4K604:2:0 40M
  • Bi-directional power can be applied to either end
  • Supports 7.1 DTS Master HD and Dolby True HD
  • Locking Power Supply Connector
  • LED indicators for power, HDCP, and HDBaseT link

Applications

  • Residential, Hospitality, House of Worship
  • Extend HDMI from problematic Cable / Sat boxes & Streaming players

DL-UHDRC70 Summary

The DigitaLinx DL-UHDRC70 is an re-clocking HDBT extender system that is compatible with source devices that does not support clock stretching such as older cable set top boxes. The DL-UHDRC70 can extend HDMI up to 70m / 230' and also extends bi-directional IR as well as RS232. Supports 7.1 DTS Master HD and Dolby True HD.

DL-UHDRC70 Diagrams

No available cross references for DL-UHDRC70

Alternatives for DL-UHDRC70

Part Number Description
DL-HDE100-H2DigitaLinx HDMI 2.0 HDBaseT Extension Set w/ Control, & Ethernet

Download Hi-res Images


DL-UHDRC70-FRONT-ANGLED.psdDL-UHDRC70-FRONT.psdDL-UHDRC70.psd

Supporting Documents

DL-UHDRC70 Quick Install Guide.pdf
EZ-RJ45 SERVICE BULLETIN.pdf
DL-UHDRC70 Owners Manual.pdf

DL-UHDRC70 Firmware

DL-UHDRC70 Software

DL-UHDRC70 Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
