Output Card for Card-Based Matrix Switcher - HDMI with Audio De-embedding
FLX-HO4A
Product Overview
Features and Benefits
- HDMI output card for FLX-88, FLX-1616, FLX-3232
- Four HDMI outputs
- Stereo analog audio de-embedding on each output
- HDMI and HDCP compliant
Applications
- Designed for use with FLX-88, FLX-1616, FLX-3232
- Ideal for corporate facilities, churches, schools, conference centers, and any other application requiring HDMI connectivity
FLX-HO4A Summary

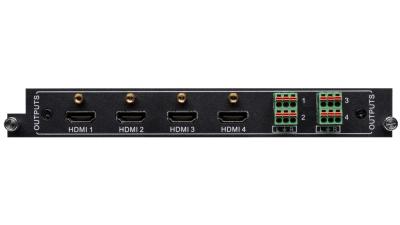

The FLX-HO4A is an HDMI input card with analog audio de-embedding that can be used in the output slots of any FLX matrix chassis. The HDMI outputs can pass high resolution video signals, including 3D and 48-bit Deep Color at 1080p. Additionally, audio signals from stereo up to 7.1 audio streams will pass to supported output devices. The FLX-HO4A also includes the ability to extract stereo audio from the HDMI signal. The external audio is output on the phoenix terminal blocks.
The FLX-HO4A features advanced EDID handling features that ensure video and audio compatibility, such as full copy and hybrid copy functions.
FLX-HO4A Diagrams
No available cross references for FLX-HO4A
Alternatives for FLX-HO4A
No equivalent alternates available for FLX-HO4A
.FLX-HO4A Firmware
FLX-HO4A Software
FLX-HO4A Pre-made Drivers
Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
