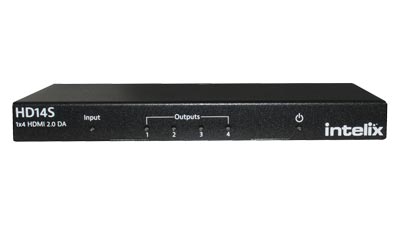

Intelix 1x4 HDMI 2.0 18G Distribution Amp / Splitter
4K60 4:4:4 18G 1 HDMI input and 4 HDMI outputs w/ EDID management
HD14SDiscontinued Item
Pricing
Login for Your PriceAvailability
Product Options
| Units: | |
Product Overview
Features and Benefits
- 1x4 HDMI distribution amplifier/splitter
- 4K, HDMI 2.0, HDCP 2.2 compliant
- Supports 18G 4K60 4:4:4
- Adjustable EDID management
- Field firmware upgradeable
- Locking power supply
- Includes mounting hardware
Applications
- HDMI signal distribution to multiple displays
- Digital Signage and retail display management
- Restaurant and bar, office wait areas
HD14S Summary
The Intelix HD14S is a 1x4 HDMI splitter with HDMI 2.0 and HDCP 2.2. The HD14S supports data rates up to 18Gbps and resolutions of 4K2K@60Hz (4:2:0). The HD14S features EDID management which provides multiple EDID options for various resolutions output and HDCP encryption between all devices, ensuring the HDMI source reliably outputs the correct content for the display.
The Intelix HD14S includes input cable equalization and signal regeneration compensation, which reduces the need for additional signal conditioning equipment by compensating for signal loss when using long input cables or cascading multiple units.
HD14S Diagrams
No available cross references for HD14S
Alternatives for HD14S
| Part Number | Description | |
|---|---|---|
| DL-HD14-H2 | Digitalinx Series 1x4 HDMI 2.0 Splitter / DA |
Download Hi-res Images
HD14S Firmware
HD14S Software
HD14S Pre-made Drivers
Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
