INT-HD52 Summary

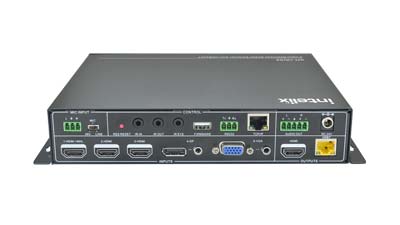

The Intelix INT-HD52 is a compact auto switcher and scaler that allows the integration of analog and digital devices into a high-definition environment. Mounting options include under table or resting on a shelf. The INT-HD52 allows the selection of five different sources, and will simultaneously scale the selected video to the specified resolution through the HDMI and HDBaseT outputs. The unit features three HDCP compliant HDMI inputs, one Display Port input and one VGA input. The VGA input can be configured to support YPbPr (component), YC (S-video), and C (composite) video formats with the appropriate VGA breakout cable. There are eight fixed output resolutions to choose from, and several aspect ratio modes which will ensure your content is displayed properly. The HDBaseT output will allow you to extend audio, video, and control signals up to 70m away. The INT-HD52 offers unique audio options designed to simplify your installation. The audio input can be used for mic or line level applications, 48V phantom power is also suppled as an option for condenser microphones. The balanced stereo audio output can be used for audio reinforcement purposes. The INT-HD52 will allow you to mix the mic/line audio input and the HDMI audio seperately. There is a seperate 3.5mm line level stereo input for the VGA and Display Port inputs. The system can be configured to either use the embedded Display Port audio or use the external 3.5mm audio input paired with the Display Port. The INT-HD52 can be controlled via front panel buttons, built in web GUI, IR, RS232 and Ethernet. RS232 and bidirectional IR control can also be extended (with a compatible HDBaseT receiver with RS232 throughput). CEC enabled sources and connected display devices can also be controlled from the INT-HD52 via CEC protocol.

INT-HD52 Diagrams

No available cross references for INT-HD52

Alternatives for INT-HD52

Download Hi-res Images

INT-HD52 Firmware

INT-HD52 Software

INT-HD52 Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
