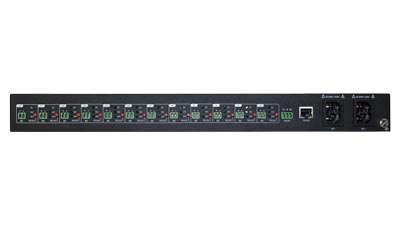

INT-PSU12 - 12 Port 5V, 12V, 24V Selectable DC Power Supply Hub with IP & RS232 Control capability

Product Overview

Features and Benefits

  • Support for up to 12 devices
  • Output voltages available are 5V, 12V, and 24V DC
  • Each output can provide up to 12 watts of power when using the 5V setting and 15 watts of power when using the 12V/24V settings
  • Front panel buttons can turn on or turn off individual outputs
  • RS232 and TCP/IP control, plus a web GUI for device control and configuration
  • Output voltages set via RS232, TCP/IP, physical button, or through the web GUI.
  • Dual 15A AC power support

Applications

  • Commercial, Residential, Government, House of Worship, Hospitality
  • All applications where powering multiple extension devices is desired


INT-PSU12 Summary

The Intelix PSU12 is a rack mounted DC power supply unit with support for up to 12 devices. Output voltages available are 5V, 12V, and 24V DC. Each output can provide up to 15 watts of power. Front panel buttons can turn on or turn off individual outputs. The PSU12 also features RS232 and TCP/IP control, plus a web GUI for device control and configuration. The output voltages are set via RS232, TCP/IP or through the web GUI.

INT-PSU12 Diagrams

No available cross references for INT-PSU12

Alternatives for INT-PSU12

Part Number Description
DL-PSU8Digitalinx Pro Series 8 Output Controllable / Selectable Voltage Rack Mount Power Supply

Download Hi-res Images



Supporting Documents

INT-PSU12 Firmware

INT-PSU12 Software

INT-PSU12 Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
