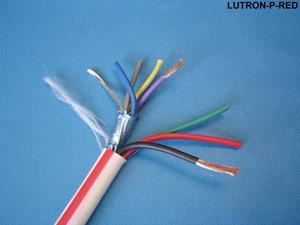

1000' White OEM Systems Lighting Control for Lutron Sivoia Shade Control SVQ-PCBL Equal Plenum Cable Reel
LUTRON-P-REDPricing
Login for Your PriceAvailability
Product Options
| Quantity: | |
| Units: |
Add to Cart
Have Tech Questions?
California Proposition 65
Product Overview
Features and Benefits
- Lutron control and power cable
- Equivalent to SVQ-PCBL
- Twisted, shielded 18 AWG shielded quad
- Twisted, unshielded 16 AWG power pair
- 18 AWG single for sensor wire
- Plenum rated PVC jacket with a red stripe
- NEC CMP, CEC CMP FT6, RoHS compliant
- 1000 foot spools
Applications
- OEM window drapery motor power and control
- Class 2 and class 3 low voltage power
- Systems instrumentation and control
LUTRON-P-RED Summary
LUTRON-P-RED Diagrams
LUTRON-P-RED is comparable to:
| Manufacturer | Part Number |
|---|---|
| Gepco | 16/18SVAP |
Alternatives for LUTRON-P-RED
No equivalent alternates available for LUTRON-P-RED
.Download Hi-res Images
Specifications
| Product Line: | LUTRON-P-RED |
|---|---|
| Description | Composite cable consiting of a 18 AWG stranded, twisted and shielded quad with a 2 conductor 16 AWG stranded, twisted, and unshielded power pair and a single 18 AWG stranded sensor wire all under on common jacket NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Component 1: | 18 AWG shielded quad 19-strand annealed bare copper conductors OSP rated polyvinyl chloride insulation Wall thickness: 0.012" | 0.30mm Diameter: 0.074" | 1.87mm 100% aluminum/poly shield foil in 24 AWG 7-strand tinned copper drain wire |
| Electrical | 18 AWG quad group conductor DCR: 5.46 Ω / 1000’ | 17.91 Ω/KM Capacitance: 45 pF/FT | 147.60 pF/M Impedance: 53 Ω Velocity of Propagation: 55 % Voltage rating: 300V 18 AWG single conductor DCR: 5.46 Ω / 1000’ | 17.91 Ω/KM Maximum current: 2.63A@25°C 16 AWG pair conductor DCR: 1.46 Ω / 1000’ | 4.80 Ω/KM Maximum current: 5.0A@25°C |
| Component 2: | 16 AWG power pair 26-strand annealed bare copper conductors Plenum rated polyvinyl chloride insulation Wall thickness: 0.012" | 0.30mm Diameter: 0.083" | 2.10mm |
| Regulatory | NEC: CL3P 75°C CEC: CMP FT6 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Power pair: Red, Black Quad group conductor: Violet, Yellow, Gray, Blue Static ground conductor: Yellow/green stripe |
| Packages | Reel: 1000’ | 305M Weight: 87 Lbs/1000’ | 130 Kg/KM |
| Assembly | Shielded quad, power pair and sensor wire cabled on a common axis |
| Installation | Pull Tension: 127 Lbs | 565 N Bend radius: 3.22" | 82mm unloaded Bend radius: 6.44" | 164mm loaded Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature |
| Construct | Ripcord under jacket |
| Applications | Lutron® shade control cable Direct drop in for Lutron SVQ-PCBL cable Plenum Lutron® quiet electronic drive motor control SIVOIA |
| Shield | 18 AWG sensor / ground wire 19-strand annealed bare copper conductors OSP rated polyvinyl chloride insulation Wall thickness: 0.012" | 0.30mm Diameter: 0.074" | 1.87mm |
| Performance | N/A |
| Jacket | Plenum rated polyvinyl chloride Colors: Natural White/red stripe Wall thickness: 0.020" | 0.51mm Diameter: 0.322" | 8.18mm |
| Final Outside Diameter (inches) | 0.322 |
