Product Overview
Features and Benefits
- Stranded annealed bare copper conductors
- Plenum rated PVC alloy insulation
- Twisted, unshielded
- Plenum rated PVC jacket
- NEC CL3P, CEC CMP FT6, RoHS compliant
Applications
- Speaker level audio distribution
- 70V speaker systems
- DC power, class 2 and class 3 power, system control
12-3C-P-WHT Summary
12-3C-P-WHT Diagrams
12-3C-P-WHT is comparable to:
| Manufacturer | Part Number |
|---|---|
| ManufacturerBelden | Part Number6001UE |
| ManufacturerBelden NG | Part Number6001UE |
Alternatives for 12-3C-P-WHT
No equivalent alternates available for 12-3C-P-WHT
.Specifications
| Product Line: | 12-3C-P |
|---|---|

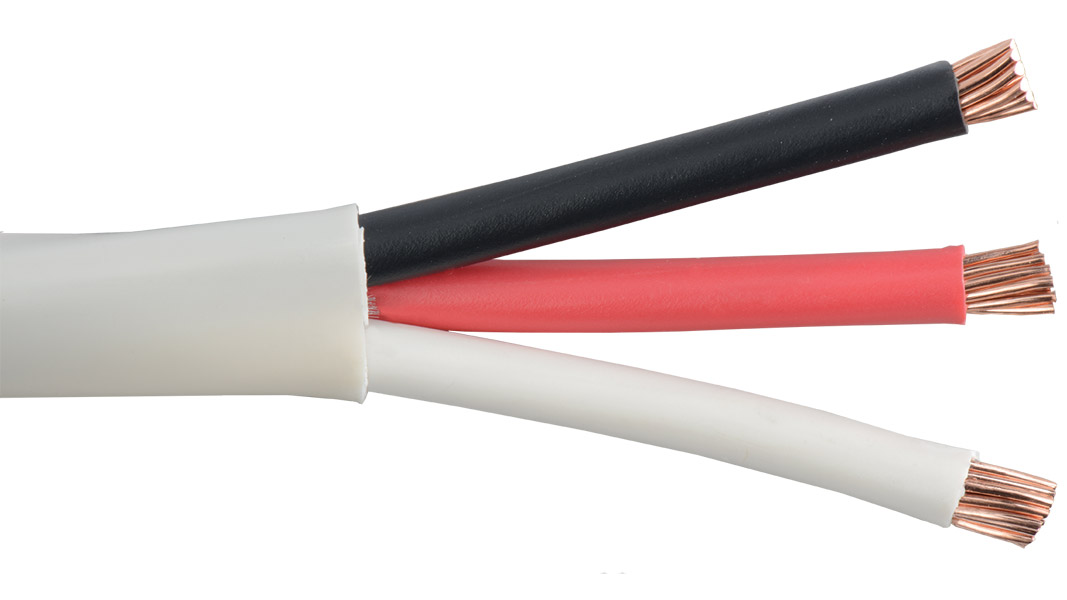

| Product Line: Description | 12-3C-P3 conductor 12 AWG stranded, twisted, and unshielded cable NEC type CL3P and CEC type CMP FT6 for Audio Only. Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725. |
| Product Line: Conductor | 12-3C-P12 AWG 19-strand annealed bare copper conductors Diameter: 0.090" | 2.29mm |
| Product Line: Electrical | 12-3C-PDC resistance: 1.75 Ω / 1000’ | 5.74 Ω/KM Mutual capacitance: 44.78 pF/FT | 146.8 pF/M Impedance: 46.5 Ω Inductance: 0.14µH/FT | 0.46µH/M Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 12A@25°C |
| Product Line: Insulation | 12-3C-PPlenum rated polyvinyl chloride Wall thickness: 0.009" | 0.23mm Diameter: 0.108" | 2.75mm |
| Product Line: Regulatory | 12-3C-PNEC: CL3P 75°C CEC: CMP FT6 For Audio Only 60°C EU RoHS-2 2011/65/EU Compliant |
| Product Line: Color Code | 12-3C-PBlack, Red, White |
| Product Line: Packages | 12-3C-PReel: 1000’ | 305M Weight: 124 Lbs/1000’ | 185 Kg/KM |
| Product Line: Assembly | 12-3C-P3 conductors twisted Lay length: 4.0" | 100mm 3.0 twists per foot | 10.0 twists per meter |
| Product Line: Installation | 12-3C-PPull Tension: 147Lbs | 654 N Bend radius: 2.63" | 67mm unloaded Bend radius: 5.26" | 134mm loaded Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature |
| Product Line: Construct | 12-3C-PRipcord under jacket |
| Product Line: Applications | 12-3C-PPlenum commercial speaker audio Plenum 70V speaker Plenum class 2 power |
| Product Line: Shield | 12-3C-PN/A |
| Product Line: Performance | 12-3C-PSpeaker level audio to 120 feet |
| Product Line: Jacket | 12-3C-PPlenum rated polyvinyl chloride Colors: Natural White Wall thickness: 0.015" | 0.38mm Diameter: 0.263" | 6.69mm |
| Product Line: Final Outside Diameter (inches) | 12-3C-P0.263 |
