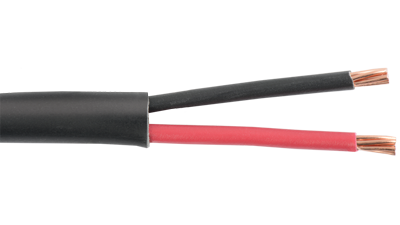

1000' Black Commercial Grade General Purpose 18 AWG 2 Conductor Plenum Cable Reel

18-2C-P-BLK


List Product Options

Ordering Options

Pricing

Login for Your Price

Availability


Product Options

Packaging:
Color(s):
Length(s):
Unit(s):
Quantity:
Add to Cart

Have Tech Questions?
California Proposition 65

Product Overview

Features and Benefits

  • 7-strand annealed bare copper conductors
  • Plenum rated PVC insulation
  • Twisted, unshielded
  • Plenum rated PVC jacket
  • NEC CMP, CEC CMP FT6, RoHS compliant
  • 1000 foot spools

Applications

  • Speaker level Audio
  • 70 volt speaker cabling
  • Class 2 and class 3 low voltage power
  • Instrumentation and control

18-2C-P-BLK Summary

18-2C-P-BLK Diagrams

18-2C-P-BLK is comparable to:

Manufacturer Part Number
Extron 22-153-03
West Penn 25224B
Belden 6300UE
Belden NG 6300UE
Windy City 99236011S
Gepco SSU182P

Alternatives for 18-2C-P-BLK

No equivalent alternates available for 18-2C-P-BLK

.

Download Hi-res Images


18-2C-P18-2C-P end

Specifications

PDF Spec Sheet

Product Line:   18-2C-P
Description 2 conductor 18 AWG stranded, twisted, and unshielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Conductor 18 AWG
7-strand annealed bare copper conductors
Diameter: 0.0454" | 1.15mm
Electrical DC resistance: 6.92 Ω / 1000’ | 22.7 Ω/KM
Mutual capacitance: 29.3 pF/FT | 96.11 pF/M
Impedance: 63 Ω
Inductance: 0.15µH/FT | 0.49µH/M
Velocity of Propagation: 55%
Voltage rating: 300V
Maximum current: 3.75A@25°C
Insulation Plenum rated polyvinyl chloride
Wall thickness: 0.008" | 0.20mm
Diameter: 0.061" | 1.56mm
Regulatory NEC: CMP 75°C
CEC: CMP FT6 60°C
EU RoHS-2 2011/65/EU Compliant
Color Code Black, Red
Packages Reel: 1000’ | 305M
Weight: 20 Lbs/1000’ | 30 Kg/KM
Assembly 2 conductors twisted
Lay length: 3.0" | 80mm
4.0 twists per foot | 12.5 twists per meter
Installation Pull Tension: 26 Lbs | 116 N
Bend radius: 1.54" | 40mm unloaded
Bend radius: 3.08" | 80mm loaded
Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature
Construct Ripcord under jacket
Applications Plenum security and low voltage power
Plenum commercial and residential speaker level audio
Plenum 70V commercial speaker audio
Plenum Class 2 and 3 power
Shield N/A
Performance Speaker level audio to 30 feet
Jacket Plenum rated polyvinyl chloride
Colors: Natural White, Yellow, Black, Green
Wall thickness: 0.014" | 0.36mm
Diameter: 0.154" | 3.92mm
Final Outside Diameter (inches) 0.154
