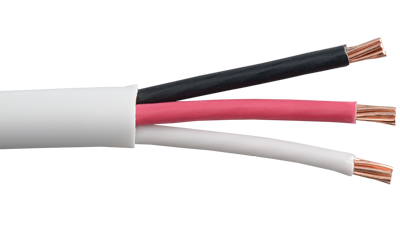

18-3C-P-WHT - Commercial Grade General Purpose 18 AWG 3 Conductor Plenum Cable

Login to Liberty

Home | Cable: Bulk Cable | Multi-Purpose | Unshielded | Plenum

Ordering Options

Pricing

Availability

Product Options

Quantity:
Units:	1000 FT Reel

Have Tech Questions?

California Proposition 65

Product Overview

Features and Benefits

7-strand annealed bare copper conductors
Plenum rated PVC insulation
Twisted, unshielded
Plenum rated PVC jacket
NEC CMP, CEC CMP FT6, RoHS compliant
1000 foot spools

Applications

Speaker level audio
70 volt speaker cabling
Class 2 and class 3 low voltage power
Instrumentation and control

18-3C-P-WHT Summary

18-3C-P-WHT Diagrams

18-3C-P-WHT is comparable to:

Manufacturer	Part Number
ManufacturerWest Penn	Part Number25234B
ManufacturerBelden NG	Part Number6301UE

Alternatives for 18-3C-P-WHT

No equivalent alternates available for 18-3C-P-WHT

Specifications

PDF Spec Sheet

Product Line:	18-3C-P
Product Line: Description	18-3C-P3 conductor 18 AWG stranded, twisted, and unshielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Product Line: Conductor	18-3C-P18 AWG 7-strand annealed bare copper conductors Diameter: 0.0454" \| 1.15mm
Product Line: Electrical	18-3C-PDC resistance: 6.92 Ω / 1000’ \| 22.7 Ω/KM Mutual capacitance: 29.3 pF/FT \| 96.11 pF/M Impedance: 63 Ω Inductance: 0.15µH/FT \| 0.49µH/M Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 3.75A@25°C
Product Line: Insulation	18-3C-PPlenum rated polyvinyl chloride Wall thickness: 0.008" \| 0.20mm Diameter: 0.061" \| 1.56mm
Product Line: Regulatory	18-3C-PNEC: CMP 75°C CEC: CMP FT6 60°C EU RoHS-2 2011/65/EU Compliant
Product Line: Color Code	18-3C-PBlack, Red, White
Product Line: Packages	18-3C-PReel: 1000’ \| 305M Weight: 28 Lbs/1000’ \| 42 Kg/KM
Product Line: Assembly	18-3C-P3 conductors twisted Lay length: 3.0" \| 80mm 4.0 twists per foot \| 12.5 twists per meter
Product Line: Installation	18-3C-PPull Tension: 43 Lbs \| 192 N Bend radius: 1.54" \| 40mm unloaded Bend radius: 3.08" \| 80mm loaded Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F \| 0°C ambient temperature
Product Line: Construct	18-3C-PRipcord under jacket
Product Line: Applications	18-3C-PPlenum security and low voltage power Plenum commercial and residential speaker level audio Plenum 70V commercial speaker audio Plenum Class 2 and 3 power
Product Line: Shield	18-3C-PN/A
Product Line: Performance	18-3C-PSpeaker level audio to 30 feet
Product Line: Jacket	18-3C-PPlenum rated polyvinyl chloride Colors: Natural White Wall thickness: 0.015" \| 0.38mm Diameter: 0.154" \| 3.91mm
Product Line: Final Outside Diameter (inches)	18-3C-P0.154
