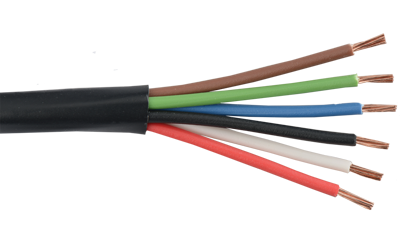

1000' Black Commercial Grade General Purpose 22 AWG 6 Conductor Plenum Cable Reel

22-6C-P-BLK


Ordering Options

Pricing

Login for Your Price

Availability

Product Options

Packaging:
Length(s):
Quantity:
Units:
Add to Cart

Have Tech Questions?
California Proposition 65

Product Overview

Features and Benefits

  • 7-strand annealed bare copper conductors
  • Plenum rated PVC insulation
  • Twisted, unshielded
  • Plenum rated PVC jacket
  • NEC CMP, CEC CMP FT6, RoHS compliant
  • 1000 foot spools

Applications

  • Line level audio
  • Security and burgular alarm
  • Infrared (IR), RS-232C signaling
  • Class 2 and class 3 low voltage power
  • Instrumentation and control

22-6C-P-BLK Summary

22-6C-P-BLK Diagrams

22-6C-P-BLK is comparable to:

Manufacturer Part Number
ManufacturerWest Penn Part Number25270B
ManufacturerBelden Part Number6504UE
ManufacturerBelden NG Part Number6504UE

Alternatives for 22-6C-P-BLK

No equivalent alternates available for 22-6C-P-BLK

.

Specifications

PDF Spec Sheet

Product Line:   22-6C-P
Product Line: Description  22-6C-P6 conductor 22 AWG stranded, twisted, and unshielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Product Line: Conductor  22-6C-P22 AWG
7-strand annealed bare copper conductors
Diameter: 0.029" | 0.73mm
Product Line: Electrical  22-6C-PDC resistance: 16.4 Ω / 1000’ | 53.79 Ω/KM
Mutual capacitance: 25.0 pF/FT | 82.0 pF/M
Impedance: 84 Ω
Velocity of Propagation: 55%
Voltage rating: 300V
Maximum current: 2.0A@25°C
Product Line: Insulation  22-6C-PPlenum rated polyvinyl chloride
Wall thickness: 0.008" | 0.20mm
Diameter: 0.044" | 1.13mm
Product Line: Regulatory  22-6C-PNEC: CMP 75°C
CEC: CMP FT6 60°C
EU RoHS-2 2011/65/EU Compliant
Product Line: Color Code  22-6C-PBlack, Red, White, Green, Brown, Blue
Product Line: Packages  22-6C-PReel: 1000’ | 305M
Weight: 26 Lbs/1000’ | 39 Kg/KM
Product Line: Assembly  22-6C-P6 conductors twisted
Lay length: 3.0" | 80mm
4.0 twists per foot | 12.5 twists per meter
Product Line: Installation  22-6C-PPull Tension: 31 Lbs | 138 N
Bend radius: 1.63" | 42mm unloaded
Bend radius: 3.26" | 84mm loaded
Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature
Product Line: Construct  22-6C-PRipcord under jacket
Product Line: Applications  22-6C-PPlenum security and low voltage power
Plenum Class 2 and 3 power
Product Line: Shield  22-6C-PN/A
Product Line: Performance  22-6C-PN/A
Product Line: Jacket  22-6C-PPlenum rated polyvinyl chloride
Colors: Natural White
Wall thickness: 0.014" | 0.357mm
Diameter: 0.163" | 4.13mm
Product Line: Final Outside Diameter (inches)  22-6C-P0.163
