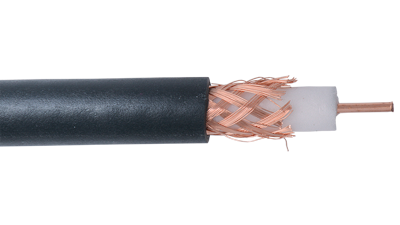

1000' Black RG6 BC CCTV CM BLACK Reel
RG6-CCTV-CM-BLKPricing
Login for Your PriceAvailability
Product Options
| Quantity: | |
| Units: |
Add to Cart
Have Tech Questions?
California Proposition 65
Product Overview
Liberty Brand CCTV Coaxial Cables
18 AWG Solid Bare Copper Center Conductor
Gas-Injected Cellular Polyethylene Dielectric
Single Shield: 95% 34 AWG Bare Copper Braid
Flame Rated Polyvinyl Chloride (FR-PVC) Jacket
NEC CM, CEC CM, RoHS Compliant
1.0 GHz Sweep Test
Analog Base Band Video Signals, Security Video
Unbalanced Line Level Audio, Subwoofer Audio, S/PDIF
Composite Video, S-Video, Component Video, RGB Video
CONNECTOR LIST FOR THIS PRODUCT:
BNC BNC-8
RCA Crimp CRCA-8
RCA Solder ZD03
CONNECTEC COMPRESSION SERIES:
BNC CM-RG6L-BNC
RCA CM-RG6L-RCA
F CM-RG6L-F
Recommended Labels:
Brady 1: M-102-427
Brady 2: M-143-427
Features and Benefits
18 AWG Solid Bare Copper Center Conductor
Gas-Injected Cellular Polyethylene Dielectric
Single Shield: 95% 34 AWG Bare Copper Braid
Flame Rated Polyvinyl Chloride (FR-PVC) Jacket
NEC CM, CEC CM, RoHS Compliant
1.0 GHz Sweep Test
Applications
Analog Base Band Video Signals, Security Video
Unbalanced Line Level Audio, Subwoofer Audio, S/PDIF
Composite Video, S-Video, Component Video, RGB Video
CONNECTOR LIST FOR THIS PRODUCT:
BNC BNC-8
RCA Crimp CRCA-8
RCA Solder ZD03
CONNECTEC COMPRESSION SERIES:
BNC CM-RG6L-BNC
RCA CM-RG6L-RCA
F CM-RG6L-F
Recommended Labels:
Brady 1: M-102-427
Brady 2: M-143-427
RG6-CCTV-CM-BLK Summary
RG6-CCTV-CM-BLK Diagrams
RG6-CCTV-CM-BLK is comparable to:
| Manufacturer | Part Number |
|---|---|
| Belden | 533945 |
| Belden NG | 533945 |
| West Penn | 806 |
Alternatives for RG6-CCTV-CM-BLK
No equivalent alternates available for RG6-CCTV-CM-BLK
.Specifications
| Product Line: | RG6-CCTV |
|---|---|
| Description | 18 AWG solid core bare copper single shield RG6 CCTV coaxial cable NEC type CM and CEC type CM. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820. |
| Conductor | 18 AWG Solid annealed bare copper conductors Diameter: 0.040" | 1.02mm |
| Electrical | DC resistance: 6.5 Ω / 1000’ | 21.32 Ω/KM Shield DCR: 2.10 Ω / 1000’ | 6.89 Ω/KM Mutual capacitance: 16.2 pF/FT | 53.1 pF/M Impedance: 75 ± 3 Ω Velocity of Propagation: 82% Voltage rating: 300V SRL 5-300 MHz: -20dB |
| Insulation | Foam polyethylene Wall thickness: 0.070" | 1.78mm Diameter: 0.180" | 4.57mm |
| Regulatory | NEC: CM 60°C CEC: CM 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Natural |
| Packages | Reel: 1000’ | 305M Weight: 45 Lbs/1000’ | 68 Kg/KM |
| Assembly | N/A |
| Installation | Pull Tension: 69 Lbs | 306 N Bend radius: 2.64" | 67mm unloaded Bend radius: 5.28" | 134mm loaded |
| Construct | N/A |
| Applications | General purpose security video General purpose composite video cable General purpose Subwoofer audio cable and mono RCA audio |
| Shield | 95% 16x8/34 AWG bare copper braid shield |
| Performance | CCTV to 622 feet Mono RCA audio 125 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Black Wall thickness: 0.028" | 0.70mm Diameter: 0.264" | 6.70mm |
| Final Outside Diameter (inches) | 0.264 |
