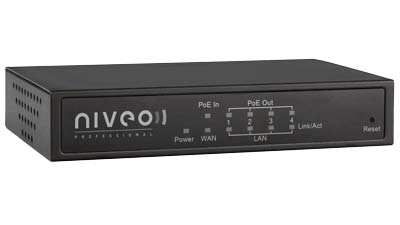

NR10 - Small Form factor Gigabit Router, 1Gb Wan, Integrated 4 port GB switch with PoE+

Product Overview

Features and Benefits

    Now Shipping
  • 4 Gigabit LAN PSE ports & 1 Gigabit WAN PD port PoE+ Gateway
  • 1 Gigabit WAN PD Port that allows NR-10 acquiring power from a PSE.
  • 4 Gigabit LAN PSE Ports that support IEEE 802.3af/at PoE, providing up to 30W per port
  • Supports IEEE 802.3az EEE (Energy Efficient Ethernet), save power while network traffic isn’t busy
  • Supports voice VLAN
  • Management features such as Max/Min Bandwidth Control, QoS, Broadcast/Multicast/Unknown Frames Storm Control

NR10 Summary

Now Shipping
The NR-10is a 4 Gigabit PSE (Power Source Equipment) LAN ports & 1 Gigabit (Powered Device) WAN port PoE+ NAT router that is designed for small or medium network environment. The compact size of the product makes it the ideal router where space is limited. The NR-10 features 4-port PoE+ IEEE 802.3at supplying up to 30 watts per port.

This product can convert standard 100~240V/AC power into low-voltage DC that runs over existing LAN cable to power up IEEE 802.3at compliant network accessories. By adding a NR-10 to an existing network, installing networking products such as Access Points and IP cameras can be easily managed and set up. Wireless device deployments are easily located with available power outlets and network administrators don’t need to use heavy AC power adapters anymore. When connected with a PSE to its PD WAN port, the NR-10can be powered without its external power adaptor, therefore eliminating the need to find a power outlet for the router.

NR10 Diagrams

No available cross references for NR10

Alternatives for NR10

No equivalent alternates available for NR10

.

Download Hi-res Images



Supporting Documents

Niveo - NR10_datasheet.pdf

NR10 Firmware

NR10 Software

NR10 Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
