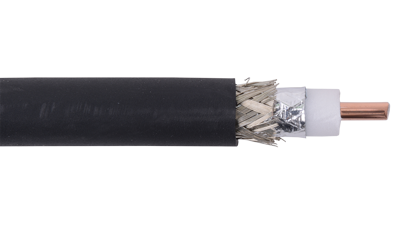

1000' Black Microwave and Wireless RF400 RG8 Solid Dual Shield Cable Reel

RG8-CMR-BLK


Ordering Options

Pricing

Login for Your Price

Availability

Product Options

Packaging:
Length(s):
Quantity:
Units:
Add to Cart

Have Tech Questions?
California Proposition 65

Product Overview

Features and Benefits

  • True RF-400 sized wireless broadcast cable
  • 10 AWG solid copper clad aluminum conductor
  • Gas-injected cellular polyethylene dielectric
  • Dual shield 100% foil and 95% tinned copper braid
  • Flame rated PVC jacket
  • 6.0 GHz sweep, very low loss, excellent VSWR
  • NEC CMR, CEC CMR FT4, sunlight resistant, RoHS compliant
  • 1000 foot spools

Applications

  • Antenna pigtails, inventory control systems
  • Satellite radio cabling, microwave signals
  • Wireless communications, instrumentation
  • Ham radio, CB radio, cellular nodes

RG8-CMR-BLK Summary

RG8-CMR-BLK Diagrams

RG8-CMR-BLK is comparable to:

Manufacturer Part Number
Belden 7810R
Belden 9913
Belden 9914

Alternatives for RG8-CMR-BLK

No equivalent alternates available for RG8-CMR-BLK

.

Download Hi-res Images


RG8-CMRRG8-CMR end

Specifications

PDF Spec Sheet

Product Line:   RG8-CMR
Description 10 AWG solid core bare copper dual shielded RG8 coaxial cable NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820.
Conductor 10 AWG
Solid copper clad aluminum conductors
Diameter: 0.108" | 2.74mm
Electrical DC resistance: 1.39 Ω / 1000’ | 4.56 Ω/KM
Shield DCR: 1.65 Ω / 1000’ | 5.41 Ω/KM
Mutual capacitance: 23.5 pF/FT | 77.1 pF/M
Impedance: 50 ± 3 Ω
Velocity of Propagation: 85%
Voltage rating: 300V
Cutoff frequency: 16.2 GHz
Insulation Foam polyethylene
Wall thickness: 0.088" | 2.25mm
Diameter: 0.285" | 7.24mm
Regulatory NEC: CMR 75°C
CEC: CMG FT4 60°C
Sunlight resistant
EU RoHS-2 2011/65/EU Compliant
Color Code Natural
Packages Reel: 1000’ | 305M
Weight: 83 Lbs/1000’ | 124 Kg/KM
Assembly N/A
Installation Pull Tension: 160 Lbs | 712 N
Bend radius: 4.05" | 103mm unloaded
Bend radius: 8.10" | 206mm loaded
Construct N/A
Applications Riser Wireless Broadcast systems for RF400 sized cables
Riser Antenna pigtails, Inventory control systems
Riser Microwave, wireless microphones
Shield 100% bonded aluminum/poly/aluminum
90% 24x9/34 AWG tinned copper braid shield
Performance 16KW maximum power
Jacket UV stabilized Flame rated polyvinyl chloride
Colors: Black
Wall thickness: 0.045" | 1.14mm
Diameter: 0.405" | 10.29mm
Final Outside Diameter (inches) 0.405
