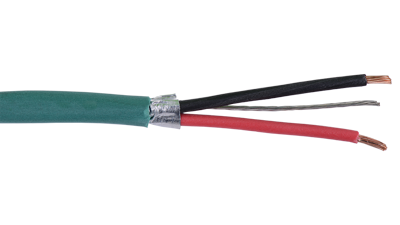

1000' Green Tight Tube Plenum Audio and Control 20 AWG 1-Pair Shielded Plenum Reel
20-2C-TTPSH-GRNList Product Options
Pricing
Login for Your PriceAvailability
Need More Options?
Dig Deeper...
Dig Deeper...
Product Options
| Packaging: | |
| Length(s): | |
| Quantity: | |
| Units: |
You might also consider this alternate:
Add to Cart
Have Tech Questions?
California Proposition 65
Product Overview
Features and Benefits
- 10-strand annealed bare copper conductors
- Plenum rated PVC alloy insulation
- Twisted, shielded
- Plenum rated PVC jacket
- NEC CMP, CEC CMP FT6 for audio only, RoHS compliant
- 1000 foot spools
Applications
- Line level audio distribution, infraRed and control
- 70V speaker systems
- DC power, class 2 and class 3 power, system control
20-2C-TTPSH-GRN Summary
20-2C-TTPSH-GRN Diagrams
20-2C-TTPSH-GRN is comparable to:
| Manufacturer | Part Number |
|---|---|
| ManufacturerExtron | Part Number22-159-03 |
| ManufacturerWest Penn | Part Number25292B |
Alternatives for 20-2C-TTPSH-GRN
| Part Number | Description | |
|---|---|---|
| Part Number20-2C-PSH-WHT | Description |
Specifications
| Product Line: | 20-2C-TTPSH |
|---|---|
| Product Line: Description | 20-2C-TTPSH2 conductor 20 AWG stranded, twisted, and shielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Product Line: Conductor | 20-2C-TTPSH20 AWG 10-strand annealed bare copper conductors Diameter: 0.0365" | 0.93mm |
| Product Line: Electrical | 20-2C-TTPSHDC resistance: 10.50 Ω / 1000’ | 34.44 Ω/KM Mutual capacitance: 43.1 pF/FT | 141.36 pF/M Impedance: 49 Ω Inductance: 0.15µH/FT | 0.49µH/M Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 3.75A@25°C |
| Product Line: Insulation | 20-2C-TTPSHPlenum rated polyvinyl chloride Wall thickness: 0.010" | 0.25mm Diameter: 0.0565" | 1.435mm |
| Product Line: Regulatory | 20-2C-TTPSHNEC: CMP 60°C CEC: CMP FT6 60°C EU RoHS-2 2011/65/EU Compliant |
| Product Line: Color Code | 20-2C-TTPSHBlack, Red |
| Product Line: Packages | 20-2C-TTPSHReel: 1000’ | 305M Weight: 19 Lbs/1000’ | 29 Kg/KM |
| Product Line: Assembly | 20-2C-TTPSH2 conductors twisted Lay length: 3.0" | 80mm 4.0 twists per foot | 12.5 twists per meter |
| Product Line: Installation | 20-2C-TTPSHPull Tension: 20 Lbs | 89 N Bend radius: 1.58" | 41mm unloaded Bend radius: 3.16" | 82mm loaded Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature |
| Product Line: Construct | 20-2C-TTPSHRipcord under jacket |
| Product Line: Applications | 20-2C-TTPSHPlenum security and low voltage power Plenum commercial and residential line level audio Plenum Class 2 and 3 power |
| Product Line: Shield | 20-2C-TTPSH100% aluminum/polyester tape foil out 24 AWG 7-strand tinned copper drain |
| Product Line: Performance | 20-2C-TTPSHLine level audio to 100 feet |
| Product Line: Jacket | 20-2C-TTPSHPlenum rated polyvinyl chloride Colors: Green Wall thickness: 0.018" | 0.457mm Diameter: 0.158" | 4.01mm |
| Product Line: Final Outside Diameter (inches) | 20-2C-TTPSH0.158 |
