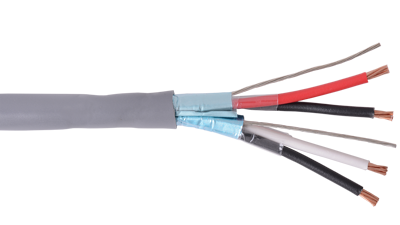

1000' Grey Commercial Grade General Purpose 22 AWG 2-Pair Individually Shielded Cable Box
22-2P-INDSH-GRYPricing
Login for Your PriceAvailability
Product Options
| Packaging: | |
| Length(s): | |
| Quantity: | |
| Units: |
Add to Cart
Have Tech Questions?
California Proposition 65
Product Overview
Features and Benefits
- 7-Strand annealed bare copper conductors
- Polypropylene dielectric insulation
- Tightly twisted and shielded
- Each pair individually shielded with its own drain
- PVC jacket
- NEC CM, CEC CMG FT4, RoHS compliant
- 1000 foot nested pull boxes
Applications
- Line level, microphone audio
- Balanced and unbalanced audio formats
- Infrared (IR), RS-232C signaling
- Class 2 and Class 3 low voltage power
- Instrumentation and control
22-2P-INDSH-GRY Summary
22-2P-INDSH-GRY Diagrams
22-2P-INDSH-GRY is comparable to:
| Manufacturer | Part Number |
|---|---|
| ManufacturerExtron | Part Number22-160-03 |
| ManufacturerBelden NG | Part Number5541FE |
| ManufacturerGepco | Part Number6600 |
| ManufacturerWest Penn | Part Number77510 |
| ManufacturerBelden | Part Number8723 |
| ManufacturerWest Penn | Part NumberD430 |
Alternatives for 22-2P-INDSH-GRY
No equivalent alternates available for 22-2P-INDSH-GRY
.Specifications
| Product Line: | 22-2P-INDSH |
|---|---|
| Product Line: Description | 22-2P-INDSH2 pair 22 AWG stranded, twisted, and individually shielded cable NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. |
| Product Line: Conductor | 22-2P-INDSH22 AWG 7-strand annealed bare copper conductors Diameter: 0.029" | 0.74mm |
| Product Line: Electrical | 22-2P-INDSHDC resistance: 16.4 Ω / 1000’ | 53.79 Ω/KM Mutual capacitance: 27.1 pF/FT | 88.89 pF/M Impedance: 56 Ω Velocity of Propagation: 67% Voltage rating: 300V Maximum current: 2.3A@25°C |
| Product Line: Insulation | 22-2P-INDSHpolypropylene Wall thickness: 0.008" | 0.20mm Diameter: 0.048" | 1.14mm |
| Product Line: Regulatory | 22-2P-INDSHNEC: CMR 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Product Line: Color Code | 22-2P-INDSHPair 1: Red, Black Pair 2: White, Green |
| Product Line: Packages | 22-2P-INDSHReel: 1000’ | 305M Weight: 24 Lbs/1000’ | 36 Kg/KM |
| Product Line: Assembly | 22-2P-INDSHPair lay length: 3.0" | 80mm 4.0 twists per foot | 12.5 twists per meter 2 Shielded pairs cabled on a common axis |
| Product Line: Installation | 22-2P-INDSHPull Tension: 29 Lbs | 129 N Bend radius: 2.02" | 52mm unloaded Bend radius: 4.04" | 104mm loaded |
| Product Line: Construct | 22-2P-INDSHRipcord under jacket |
| Product Line: Applications | 22-2P-INDSHRiser line level balanced audio Riser security and low voltage power |
| Product Line: Shield | 22-2P-INDSH100% aluminum/polyester tape foil in 24 AWG 7-strand tinned copper drain |
| Product Line: Performance | 22-2P-INDSHAssuming 600 Ω source impedance: Line level balanced audio 230 feet |
| Product Line: Jacket | 22-2P-INDSHFlame rated polyvinyl chloride Colors: Gray Wall thickness: 0.020" | 0.51mm Diameter: 0.202" | 5.13mm |
| Product Line: Final Outside Diameter (inches) | 22-2P-INDSH0.202 |
