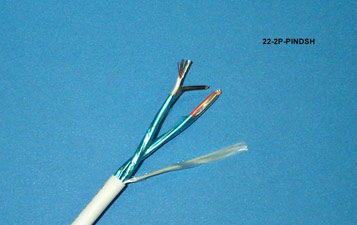

1000' Black Commercial Grade General Purpose 22 AWG 2-Pair Plenum Individually Shielded Cable Reel

22-2P-PINDSH-BLK


List Product Options

Ordering Options

Pricing

Login for Your Price

Availability


Product Options

Packaging:
Color(s):
Length(s):
Quantity:
Units:
You might also consider this alternate:

Add to Cart

Have Tech Questions?
California Proposition 65

Product Overview

Features and Benefits

  • Stranded annealed bare copper conductors
  • Plenum rated PVC alloy insulation
  • Plenum rated PVC alloy insulation
  • Twisted, individually isolated shielded pairs
  • Plenum rated PVC jacket
  • UL 444, UL 13 CMP rated for the US and Canada
  • Standard package 1000 foot spool

Applications

  • Line level, microphone level audio runs under 100 feet.
  • Balanced and unbalanced audio formats
  • Infrared (IR), RS-232C signaling
  • Instrumentation and control

22-2P-PINDSH-BLK Summary

22-2P-PINDSH-BLK Diagrams

22-2P-PINDSH-BLK is comparable to:

Manufacturer Part Number
ManufacturerBelden NG Part Number1325A
ManufacturerExtron Part Number22-162-03
ManufacturerWest Penn Part Number25510B
ManufacturerGepco Part Number6600HS
ManufacturerBelden Part Number82723
ManufacturerBelden Part Number88723

Alternatives for 22-2P-PINDSH-BLK

Part Number Description
Part Number22-2P-CMP-SIAMEZDescription

Specifications

PDF Spec Sheet

Product Line:   22-2P-PINDSH
Product Line: Description  22-2P-PINDSH2 pair 22 AWG stranded, twisted, and individually shielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Product Line: Component 1:  22-2P-PINDSH22 AWG
7-strand annealed bare copper conductors
Diameter: 0.030" | 0.76mm
Product Line: Electrical  22-2P-PINDSHDC resistance: 16.4 Ω / 1000’ | 53.79 Ω/KM
Mutual capacitance: 42.0 pF/FT | 137.76 pF/M
Impedance: Not specified
Velocity of Propagation: 55%
Voltage rating: 300V
Maximum current: 2.3A@25°C
Product Line: Component 2:  22-2P-PINDSHPlenum rated polyvinyl chloride
Wall thickness: 0.008" | 0.20mm
Diameter: 0.046" | 1.17mm
Product Line: Regulatory  22-2P-PINDSHNEC: CMP 75°C
CEC: CMP FT6 60°C
EU RoHS-2 2011/65/EU Compliant
Product Line: Color Code  22-2P-PINDSHPair 1: Red, Black
Pair 2: White, Green
Product Line: Packages  22-2P-PINDSHReel: 1000’ | 305M
Weight: 24 Lbs/1000’ | 36 Kg/KM
Product Line: Assembly  22-2P-PINDSHPair lay length: 2.0" | 51.0mm
6.0 twists per foot | 19.6 twists per meter
2 Shielded pairs cabled on a common axis
Product Line: Installation  22-2P-PINDSHPull Tension: 29 Lbs | 129 N
Bend radius: 1.57" | 40mm unloaded
Bend radius: 3.14" | 80mm loaded
Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature
Product Line: Construct  22-2P-PINDSHRipcord under jacket
Product Line: Applications  22-2P-PINDSHPlenum line level balanced audio
Plenum security and low voltage power
Product Line: Shield  22-2P-PINDSH100% aluminum/polyester tape foil in
24 AWG 7-strand tinned copper drain
Product Line: Performance  22-2P-PINDSHAssuming 600 Ω source impedance:
Line level balanced audio 130 feet
Product Line: Jacket  22-2P-PINDSHPlenum rated polyvinyl chloride
Colors: Natural White, Black
Wall thickness: 0.015" | 0.38mm
Diameter: 0.157" | 3.99mm
Product Line: Final Outside Diameter (inches)  22-2P-PINDSH0.157
