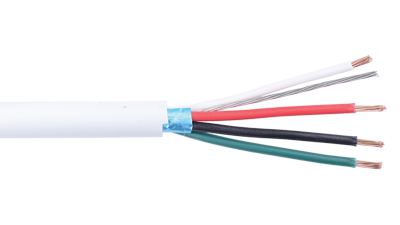

1000' White Intercom 22 AWG 2-Pair with 1-Pair Shielded Plenum Cable Reel

22-2P-PSH/UN-WHT


List Product Options

Ordering Options

Pricing

Login for Your Price

Availability


Product Options

Packaging:
Length(s):
Quantity:
Units:
Add to Cart

Have Tech Questions?
California Proposition 65

Product Overview

Features and Benefits

  • Stranded annealed bare copper conductors
  • Plenum rated PVC alloy insulation
  • 1 pair twisted, shielded. 1 pair twisted, unshielded
  • Plenum rated PVC jacket
  • NEC CMP, CEC CMP FT6, RoHS compliant
  • Standard package 1000 foot spool

Applications

  • Plenum intercom audio and power support runs
  • Balanced and unbalanced audio formats
  • Infrared (IR), RS-232C signaling
  • Instrumentation and control

22-2P-PSH/UN-WHT Summary

22-2P-PSH/UN-WHT Diagrams

22-2P-PSH/UN-WHT is comparable to:

Manufacturer Part Number
ManufacturerWest Penn Part Number25357B
ManufacturerBelden Part Number6502GE

Alternatives for 22-2P-PSH-UN-WHT

No equivalent alternates available for 22-2P-PSH/UN-WHT

.

Specifications

PDF Spec Sheet

Product Line:   22-2P-PSH/UN
Product Line: Description  22-2P-PSH/UN2 pair 22 AWG stranded, twisted, and one pair individually shielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Product Line: Conductor  22-2P-PSH/UN22 AWG
7-strand annealed bare copper conductors
Diameter: 0.030" | 0.76mm
Product Line: Electrical  22-2P-PSH/UNDC resistance: 17.5 Ω / 1000’ | 57.4 Ω/KM
Mutual capacitance: 39.7 pF/FT | 130.22 pF/M
Shield capacitance: 72.0 pF/FT | 236.2 pF/M
Impedance: 72.7 Ω
Velocity of Propagation: 55%
Voltage rating: 300V
Maximum current: 2.3A@25°C
Product Line: Insulation  22-2P-PSH/UNPlenum rated polyvinyl chloride
Wall thickness: 0.008" | 0.20mm
Diameter: 0.046" | 1.17mm
Product Line: Regulatory  22-2P-PSH/UNNEC: CMP 75°C
CEC: CMP FT6 60°C
EU RoHS-2 2011/65/EU Compliant
Product Line: Color Code  22-2P-PSH/UNPair 1: Red, Black
Pair 2: White, Green
Product Line: Packages  22-2P-PSH/UNReel: 1000’ | 305M
Weight: 20 Lbs/1000’ | 30 Kg/KM
Product Line: Assembly  22-2P-PSH/UNPair lay length: 3.0" | 80mm
4.0 twists per foot | 12.5 twists per meter
2 Shielded pairs cabled on a common axis
Product Line: Installation  22-2P-PSH/UNPull Tension: 26 Lbs | 116 N
Bend radius: 1.48" | 38mm unloaded
Bend radius: 2.96" | 76mm loaded
Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature
Product Line: Construct  22-2P-PSH/UNRipcord under jacket
Product Line: Applications  22-2P-PSH/UNPlenum line level balanced audio
Plenum intercom audio and power
Plenum security and low voltage power
Product Line: Shield  22-2P-PSH/UNPair 1: 100% aluminum/polyester tape foil in
22 AWG 7-strand tinned copper drain
Pair 2: Unshielded
Product Line: Performance  22-2P-PSH/UNAssuming 600 Ω source impedance:
Line level balanced audio 130 feet
Product Line: Jacket  22-2P-PSH/UNPlenum rated polyvinyl chloride
Colors: Natural White
Wall thickness: 0.015" | 0.38mm
Diameter: 0.137" | 3.48mm
Product Line: Final Outside Diameter (inches)  22-2P-PSH/UN0.137
