Product Overview

Features and Benefits

  • Solid annealed bare copper conductors
  • High density polyethylene insulation
  • 4 pairs twisted in varying lays and cabled
  • Flame rated PVC jacket

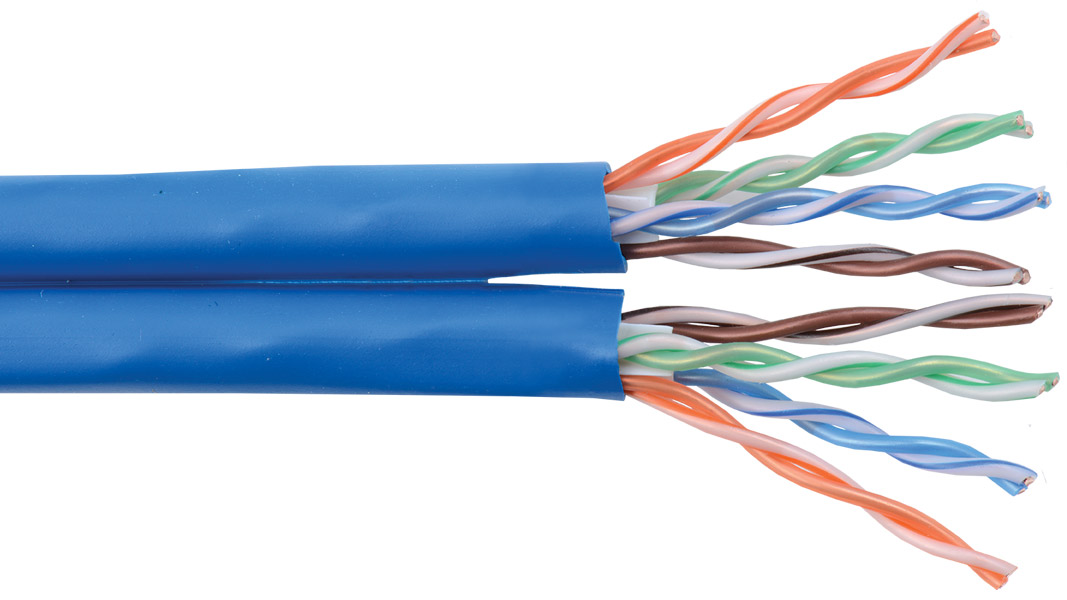

  • 2 jacketed cables in parallel (SPT) and joined with a web
  • TIA/EIA-568-C Category 6
  • NEC CMR, CEC CMR FT4, RoHS compliant
  • 1000 foot spools, nested boxes, or cool spool boxes

Applications

  • Horizontal LAN 10/100/1000BaseT ethernet
  • Audio, video, infrared, IP control
  • Balun infrastructure, voice, voice over IP
  • PoE, HDBaseT, analog and digital media

24-8P-L6-SIAM-BLU Summary

24-8P-L6-SIAM-BLU Diagrams

No available cross references for 24-8P-L6-SIAM-BLU

Alternatives for 24-8P-L6-SIAM-BLU

No equivalent alternates available for 24-8P-L6-SIAM-BLU

.

Download Hi-res Images


24-8P-L6-SIAM-BLU24-8P-L6-SIAM-BLU end

Specifications

PDF Spec Sheet


Product Line:   24-8P-L6-SIAM
Description Dual 4 pair 23 AWG solid, twisted, and unshielded cable NEC type CMR and CEC type CMR FT4. Third party verified to ANSI/TIA-568C Category 6 performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Fiber Type 23 AWG
Solid annealed bare copper conductors
Diameter: 0.023" | 0.58mm
Optical Characteristics DC resistance: ≤ 20.3 Ω / 1000’ | 66.6 Ω/KM
DCR Unbalance: ≤ 5.0%
Capacitance: 14.0 pF/FT | 45.9 pF/M
Impedance: 100 ± 15 Ω
Propagation Delay (Skew): 45ns/100m MAX
Velocity of Propagation: 69%
Voltage rating: 300V
Pair to ground capacitance Unbalance: ≤ 330 pF/100M
Maximum current: 1.4A@25°C
Buffer High density polyethylene
Wall thickness: 0.009" | 0.22mm
Diameter: 0.041" | 1.03mm
Regulatory ANSI/TIA-568-C Category 6
NEC: CMR 75°C
CEC: CMG FT4 60°C
EU RoHS-2 2011/65/EU Compliant
Color Code Note: Both cables use same code
Pair 1: Blue, White/blue stripe
Pair 2: Orange, White/orange stripe
Pair 3: Green, White/green stripe
Pair 4: Brown, White/brown stripe
Packages Reel: 1000’ | 305M
Weight: 60 Lbs/1000’ | 90 Kg/KM
Subassembly Pairs twisted in varying lay lengths with co-extruded like striped conductor
Each pair in a polyethylene X separator interstice
Installation Pull Tension: 50 Lbs | 222 N
Bend radius: 4.75" | 122mm unloaded
Bend radius: 9.50" | 244mm loaded
Final Assembly Ripcord under the jackets
2 jacketed cables in parallel joined by a web
Applications Riser LAN systems 10/100/1000BaseT
Riser Phone, Voice, Video over IP and security video
Riser BALUN support and media infrastructure
Riser Infrared, audio
Construct N/A
Performance LAN: 300 feet
Passive Baluns up to 2500 feet
Jacket Flame rated polyvinyl chloride
Colors: Blue, White
Wall thickness: 0.020" | 0.50mm
Cable diameter: 0.234 x 0.478" | 5.95 x 12.15mm
Final Outside Diameter (inches) 0.234 x 0.478
