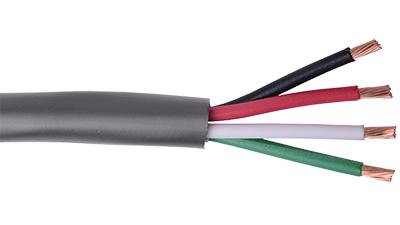

Grey COMMERCIAL 14/4 CL3R GRAY Reel
14-4C-GRY-RAN
California Proposition 65
Product Overview
General Purpose Cable, Commercial Grade
Stranded Annealed Bare Copper Conductors
Semi-Rigid PVC Insulation
Twisted, unshielded
Riser rated PVC Jacket
NEC CL3R, CEC CMG, RoHS Compliant
Speaker Level Audio Distribution
70V Speaker systems
DC Power, Class 2 and Class 3 power, system control
CONNECTOR LIST FOR THIS PRODUCT:
CONNECTEC SPEAKER CONNECTOR:
BASE CM-A-14
BANANA CM-APBA
SPADE CM-APSL
ANGLE PIN CM-APAP
COMPRESSION SCREW STYLE (NO TOOLS REQUIRED)
BANANA ZB03
SPADE ZA02-II
CRIMP SPADE ZA02
Recommended Labels:
Brady 1: M-102-427
Brady 2: M-143-427
Features and Benefits
Stranded Annealed Bare Copper Conductors
Semi-Rigid PVC Insulation
Twisted, unshielded
Riser rated PVC Jacket
NEC CL3R, CEC CMG, RoHS Compliant
Applications
Speaker Level Audio Distribution
70V Speaker systems
DC Power, Class 2 and Class 3 power, system control
CONNECTOR LIST FOR THIS PRODUCT:
CONNECTEC SPEAKER CONNECTOR:
BASE CM-A-14
BANANA CM-APBA
SPADE CM-APSL
ANGLE PIN CM-APAP
COMPRESSION SCREW STYLE (NO TOOLS REQUIRED)
BANANA ZB03
SPADE ZA02-II
CRIMP SPADE ZA02
Recommended Labels:
Brady 1: M-102-427
Brady 2: M-143-427
14-4C-GRY-RAN Summary
14-4C-GRY-RAN Diagrams
14-4C-GRY-RAN is comparable to:
| Manufacturer | Part Number |
|---|---|
| West Penn | 246 |
| Belden | 5102UE |
| Belden NG | 5102UE |
Alternatives for 14-4C-GRY-RAN
No equivalent alternates available for 14-4C-GRY-RAN
.Specifications
| Product Line: | 14-4C |
|---|---|
| Description | 4 conductor 14 AWG stranded, twisted, and unshielded cable NEC type CL3R and CEC type CMG FT4 for Audio Only Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725. |
| Conductor | 14 AWG 19-strand annealed bare copper conductors Diameter: 0.070" | 1.78mm |
| Electrical | DC resistance: 2.73 Ω / 1000’ | 8.95 Ω/KM Mutual capacitance: 28.6 pF/FT | 93.81 pF/M Impedance: 65 Ω Inductance: 0.15µH/FT | 0.49µH/M Velocity of Propagation: 55% Voltage rating: 300V Maximum current: 6.4A@25°C |
| Insulation | Semi-rigid polyvinyl chloride Wall thickness: 0.012" | 0.30mm Diameter: 0.094" | 2.39mm |
| Regulatory | NEC: CL3R 75°C CEC: CMG FT4 For Audio Only 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Black, Red, White, Green |
| Packages | Reel: 1000’ | 305M Weight: 75 Lbs/1000’ | 112 Kg/KM |
| Assembly | 4 conductors twisted Lay length: 4.0" | 100mm 3.0 twists per foot | 10.0 twists per meter |
| Installation | Pull Tension: 132 Lbs | 294 N Bend radius: 2.67" | 68mm unloaded Bend radius: 5.34" | 136mm loaded |
| Construct | Ripcord under jacket |
| Applications | Riser commercial and residential speaker level audio General purpose 70V commercial speaker audio General purpose Class 2 and 3 power |
| Shield | N/A |
| Performance | Speaker level audio to 80 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Gray Wall thickness: 0.020" | 0.51mm Diameter: 0.267" | 6.78mm |
| Final Outside Diameter (inches) | 0.267 |
