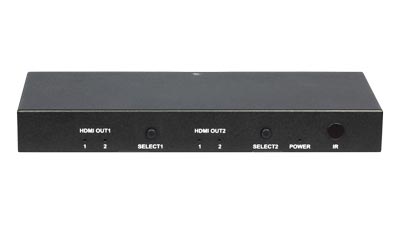

DL-S22 - 2x2 4K HDMI Matrix Switch with audio de-embedding and IR and pushbutton control

Product Overview

Features and Benefits

  • Routes 2 Ultra HD sources to 2 Ultra HD displays
  • HDCP Compliant
  • Supports resolutions up to Ultra HD 4K@30Hz
  • Analog stereo audio de-embedded from output 2
  • IR Remote and Push button controls for Routing
  • Automatic input signal equalization and regeneration

Applications

  • HDMI Multimedia Switching and Distribution
  • Digital Signage Applications
  • Restaurant and Bar, Residential HDMI distribution

DL-S22 Summary

The DigitaLinx DL-S22 is a two input by two output slim HDMI matrix with Ultra HD 4K support. The DL-S22 is HDCP 1.4 compliant and supports resolutions up to 4K@30Hz and 1080p@60Hz. Built-in diagnostic LEDs ensure hassle-free and robust installations.

The DL-S22 features two advanced technologies: automatic EDID management, which provides Copy EDID options for different resolutions output, and HDCP management, which authenticates HDCP encryption between all devices, ensuring the HDMI source reliably outputs correct content for display.

The matrix switcher supports CEC control to turn on/off the TV and offers a stereo audio output. The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.

DL-S22 Diagrams

No available cross references for DL-S22

Alternatives for DL-S22

Part Number Description
DL-S42-H2DigitaLinx 4x2 HDMI 2.0 Matrix Switch W/ ARC

Supporting Documents

DL-S22 Installation Guide

DL-S22 Firmware

DL-S22 Software

DL-S22 Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
