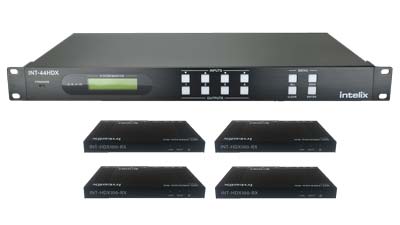

INT-44HDX-KIT - 4x4 HDMI / HDBaseT Matrix Switcher kitted with 4 HDBaseT Receivers

Product Overview

Features and Benefits

  • kit includes (1) INT-44HDX and (4) INT-HDX100-RX
  • Four HDMI inputs with HDCP 2.2 support
  • Four HDBaseT with PoH, with two mirrored HDMI, outputs
  • 100 m (328 ft) maximum extender distance
  • Analog and digital audio de-embedding on each output
  • Front panel, IR, TCP/IP, and RS232 control
  • IR and RS232 routing
  • IR and RS232 tunneling over HDBaseT
  • Control page and configuration accessible from web browser
  • Advanced HDCP management
  • Matched HDBT Certified receivers for each output.

Applications

  • True matrix routing and distribution of HDMI signals
  • A/V routing in environments with demanding control system
  • Ideal for houses of worship, corporate video conferencing,

This Item Includes:
INT-44HDX
1 4x4 HDMI / HDBaseT Matrix Switcher (INT-44HDX)
INT-HDX100-RX
4 HDMI Slim 100M, POH, IR and Control HDBaseT Extender - Receiver (INT-HDX100-RX)
IR-AC
4 Control System IR Adapter cable for Intelix and Digitalinx Products (IR-AC)



INT-44HDX-KIT Summary

INT-44HDX-KIT Diagrams

No available cross references for INT-44HDX-KIT

Alternatives for INT-44HDX-KIT

No equivalent alternates available for INT-44HDX-KIT

.

Download Hi-res Images


 INT-44HDX-KITINT-44HDXINT-44HDX front left30INT-44HDX front right30INT-44HDX rearINT-HDX100-RX frontINT-HDX100-RX rear

Specifications

PDF Spec Sheet


INT-44HDX-KIT Firmware

INT-44HDX-KIT Software

INT-44HDX-KIT Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
