Atlas Sound Low Profile Sound Masking System UL2043
AM1200
Product Overview
Features and Benefits
- General purpose, square 8" speaker baffle
- Accommodates standard 8" (203mm) loudspeakers
- For multi-purpose ceiling and wall-mount applications
- Heavy CRS construction guards against vibration / rattle
- One piece CRS construction includes "no leak" gasket.
- Finish is textured white epoxy
- UL1480 Listed
Applications
- Commercial audio systems and solutions
- Use for background music (BGM) and paging systems
AM1200 Summary

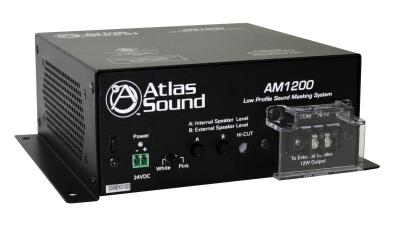

AM1200 Sound Masking System features a compact enclosure utilizing two efficient wide range 2" x 4" speakers that are powered by an internal 12W amplifier.
Selectable white and pink analog sources are incorporated to allow maximum masking design flexibility and a variable high cut filter contours the masking noise to the appropriate environment.
The AM1200 also features an external 12 Watt 70.7V amplifier output to drive other 70.7V speakers, such as the Atlas Sound M2000-SM transducer, making it ideal for small installations that require a self-contained masking system.
AM1200 Diagrams
No available cross references for AM1200
Alternatives for AM1200
No equivalent alternates available for AM1200
