APC-30T - 30 Watt 70V General Purpose Wide Angle Paging Horn

Product Overview

Features and Benefits

  • 70V wide angle paging horn
  • Wide angle dispersion for maximum horizontal coverage
  • 25V/70.7V/100V-30W Transformer
  • Power Taps-2, 3.8, 7.5, 15, 30W @ 70.7V
  • Sensitivity: 109db
  • Dispersion: 70H x 95V
  • Omni-purpose bracket for positioning flexibility

Applications

  • Commercial audio systems and solutions
  • Use for indoor outdoor public address and paging

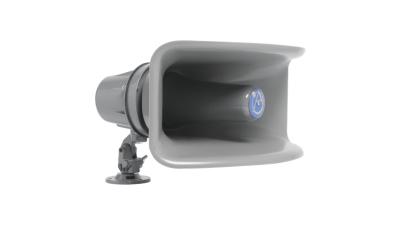

APC-30T Summary

APC-30T is a high-power 30 watt loudspeaker with extended low frequency response. Unit is equipped with a wide-angle molded plastic bell for sound directivity. Transformer includes a screwdriver-adjust power selection with a 45 ohm tap for intercom and talk-back use.

For mounting, the APC-30T features the Omni-Purpose® bracket for vertical/horizontal positioning with provisions for surface/strap mounting to pillars and I-beams.

APC-30T Diagrams

No available cross references for APC-30T

Alternatives for APC-30T

No equivalent alternates available for APC-30T

.
APC-30T_Datasheet

Specifications

PDF Spec Sheet

APC-30T Firmware

APC-30T Software

APC-30T Pre-made Drivers

Disclaimer: Liberty AV assumes no responsibility or liability for pre-built control system drivers. The driver may or may not work for all projects, in situations where the driver is not suitable for the switching architecture, the driver cannot be adjusted for customized usage by Liberty. If you would like to contract services for customized control for a project please contact your sales representative.
